Small Silos
Small on‑farm silos are increasingly used to store grain before sale or livestock use, but effective phosphine fumigation requires gas‑tight, pressure‑tested sealing to Australian Standard AS2628, a five‑minute half‑life. In unsealed silos, target concentrations of 300 ppm for seven days or 200 ppm for ten days cannot be maintained, so pests survive at some life stages and resistance increases, and many silos sold as “sealed” are not truly gas‑tight, making them unsuitable for fumigation.
Request a Quote APPLICATIONS TO SMALL SILOS (2 X 1000TN)
- 01

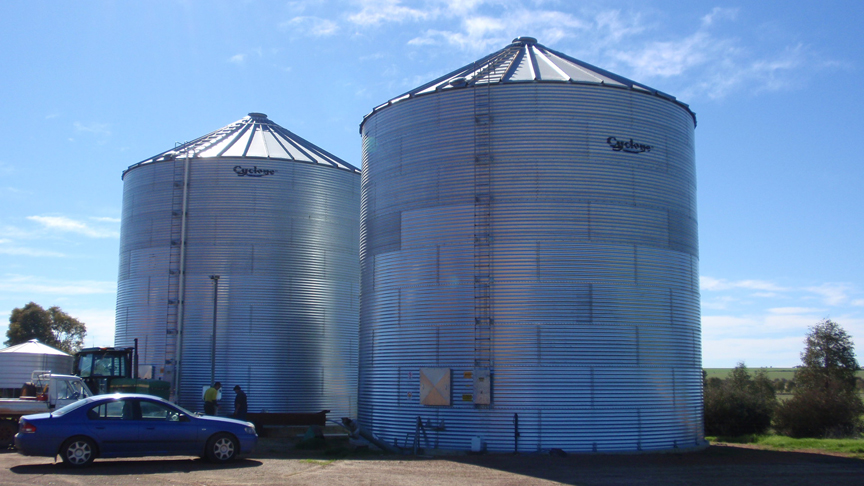

We started the process with 2 unsealed, 1000 tonne silos. Ready to be sealed and treated to reach safety standards. - 02

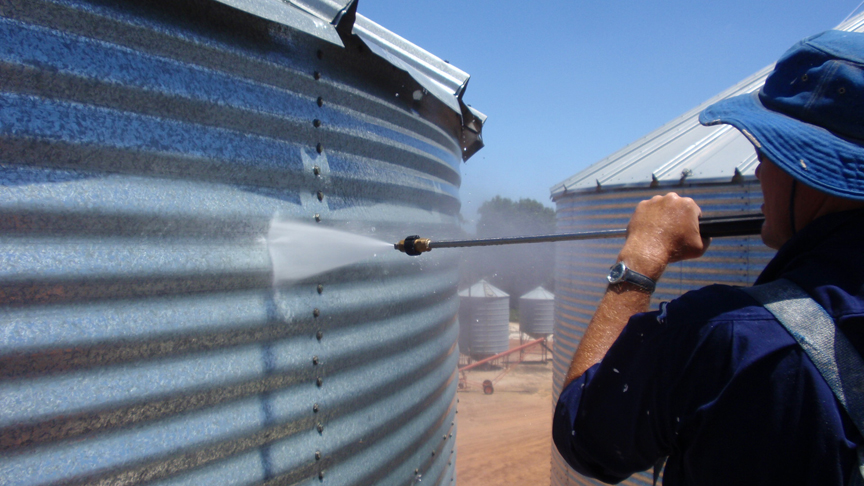

Pressure cleaning the entire surface removing any dirt, grime and contaminates is essential. - 03

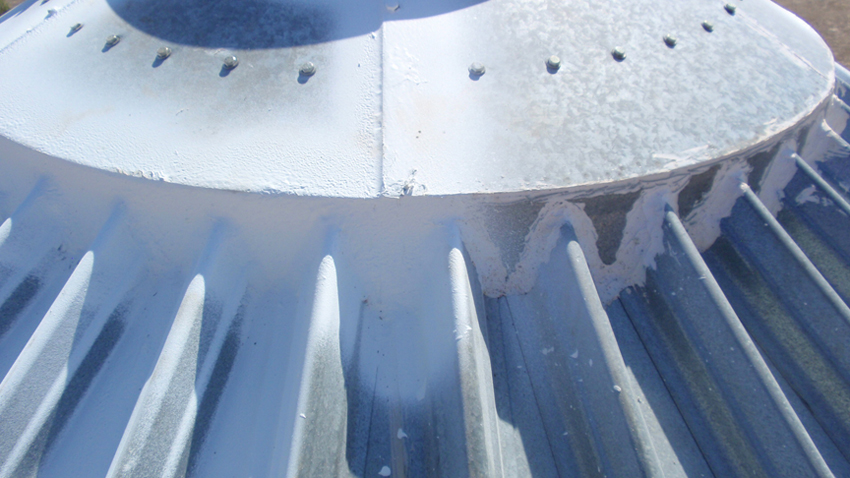

Sealing the top inload hatch flashing using Glo-Mastic membrane. - 04

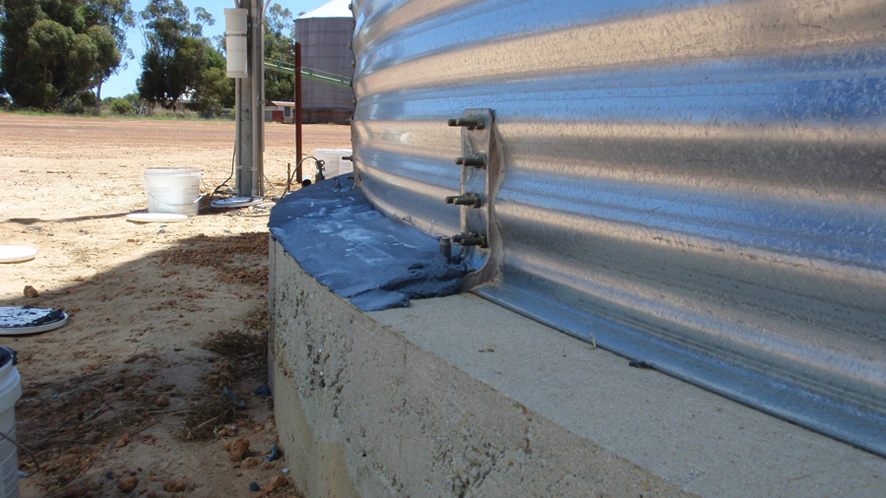

Sealing the external floor to wall joint with a trowel able Global Flexible Filler over the joint. This is applied at a 10 deg slope away from the silo wall to stop water ponding at this location and can withstand the excessive movement. - 05

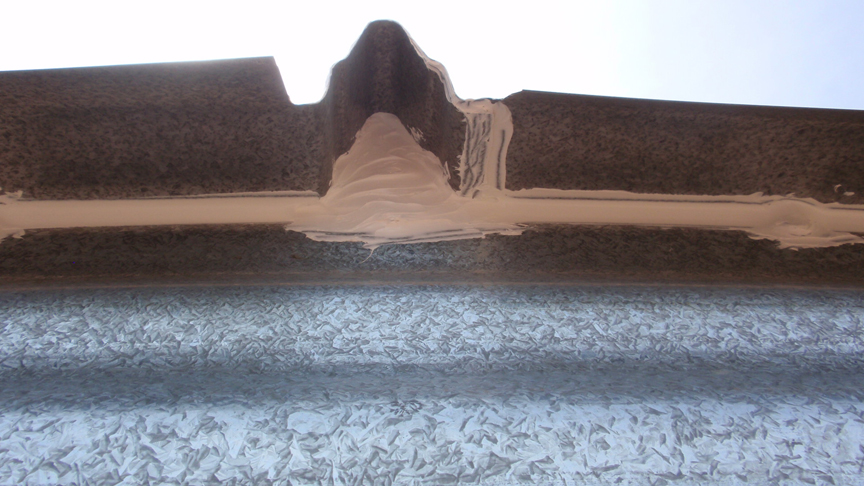

The roof to wall section which is called the eave is generally the hardest area to seal. The void at the eave can vary pending on design and manufacture and needs to be very flexible as the roof and wall metal thickness are different which move at different rates. This area is sealed using a combination of polyurethane mastic’s and Glo-Mastic. - 06

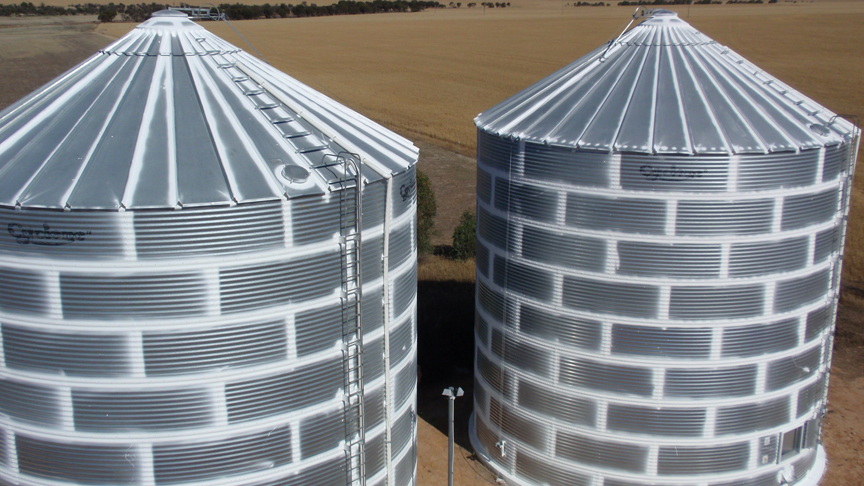

The entire silos joints, bolts, flashings and penetrations over the walls and roof sealed using Glo-Mastic. - 07

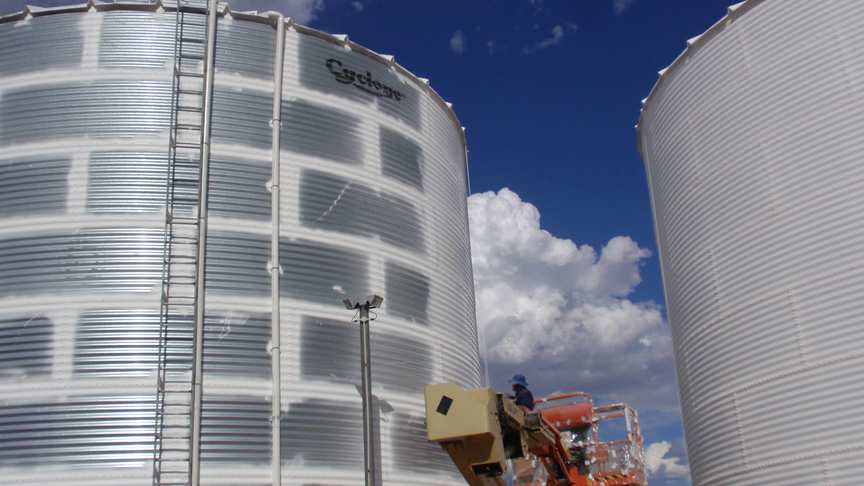

The silos ready for 2 coats of HRC (Heat Reflective Coating) over the entire surface including the concrete stud wall to reduce the internal temperature and pressure on the seal. - 08

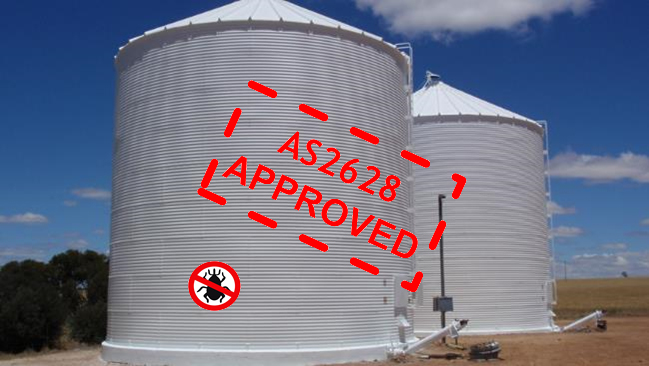

Sealing project completed in 9 days to AS2628 . 2 x 1000 tonne silos ready to be fumigated as this process can be done full or empty.
Applications for structure sealing
Our expert team uses advanced techniques and quality materials to meet AS 2628 standards, ensuring your grain is protected, fumigation is effective, and your storage assets last longer. Here are some examples of how we achieve it.
