Large Silos
Sealing for large grain storages of 10,000 tonnes or more falls outside Australian Standard AS2628 used for general farm silos. These 20,000‑tonne storages are sealed and tested to ensure internal pressure decay does not exceed half of an induced pressure, 200 Pascals, over 10 minutes when empty, and only when internal pressure is at or below ambient external pressure.
Request a Quote APPLICATIONS TO LARGE SILOS (3 X 20,000TN)
- 01

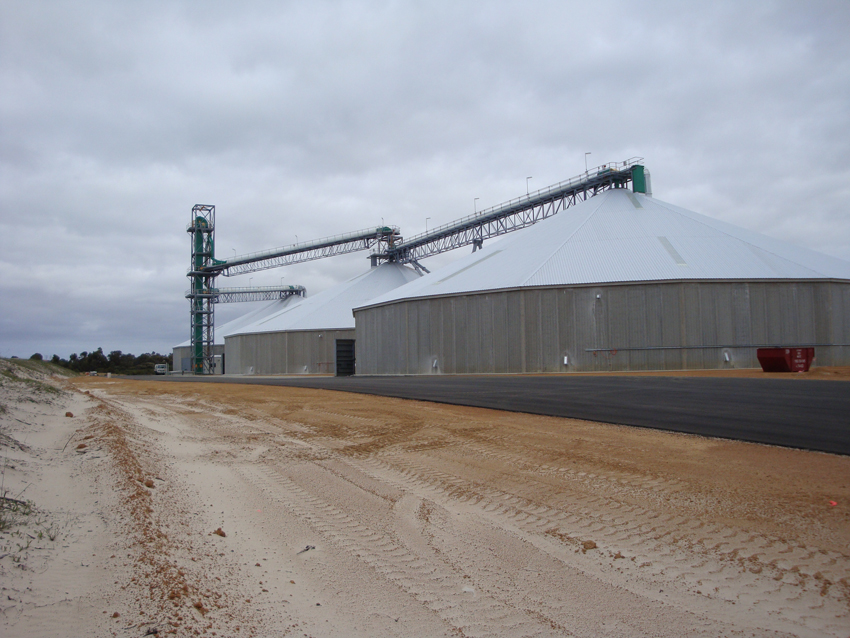

3 x 20,000 tonne unsealed newly built silos ready to be sealed. Roof sealed externally and walls sealed internally—traditional since the early 80s. Entire internal sealing used in areas with bird damage issues. - 02

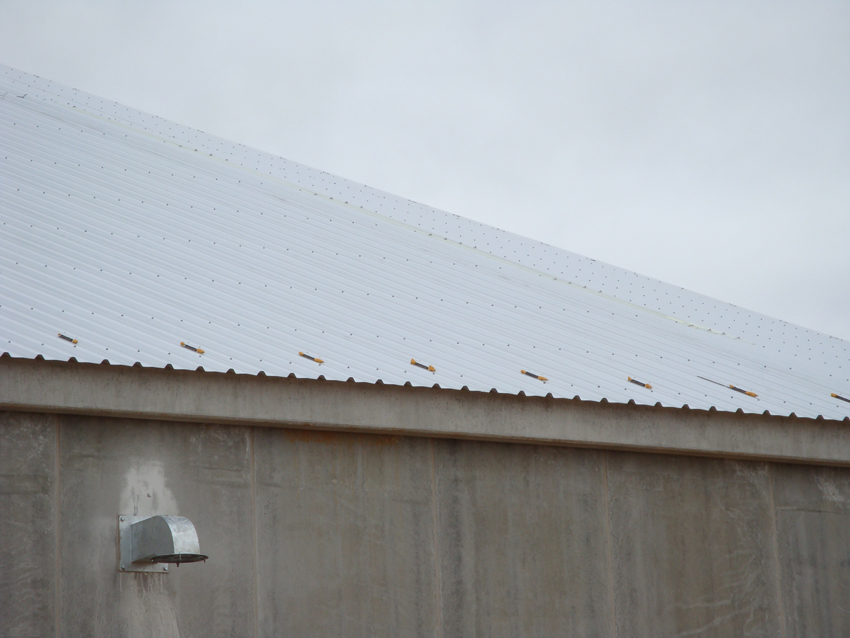

External “End Stopping”: Bostik Prestick 5214 Black Sealing Strip cut to ~150mm x 150mm placed at roof cladding lap-ends near the gutter line; laps unscrewed, strip inserted, refixed with original teks and additional stitching screws as needed. - 03

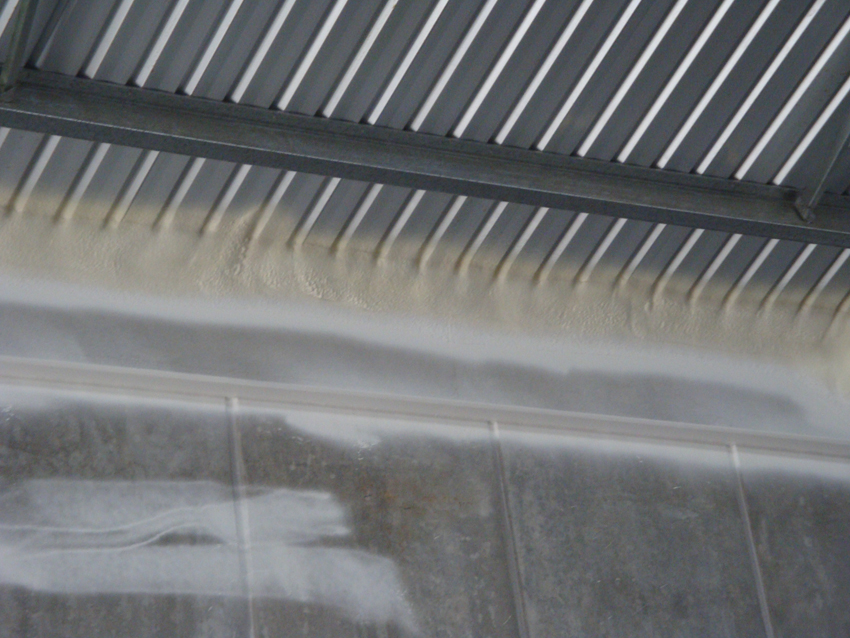

Global Flexithane 303 (2‑part polyurethane foam) sprayed internally over the end stop, encasing the roof‑to‑wall void; highly flexible to withstand structural movement and applied to shed dust from flat areas. - 04

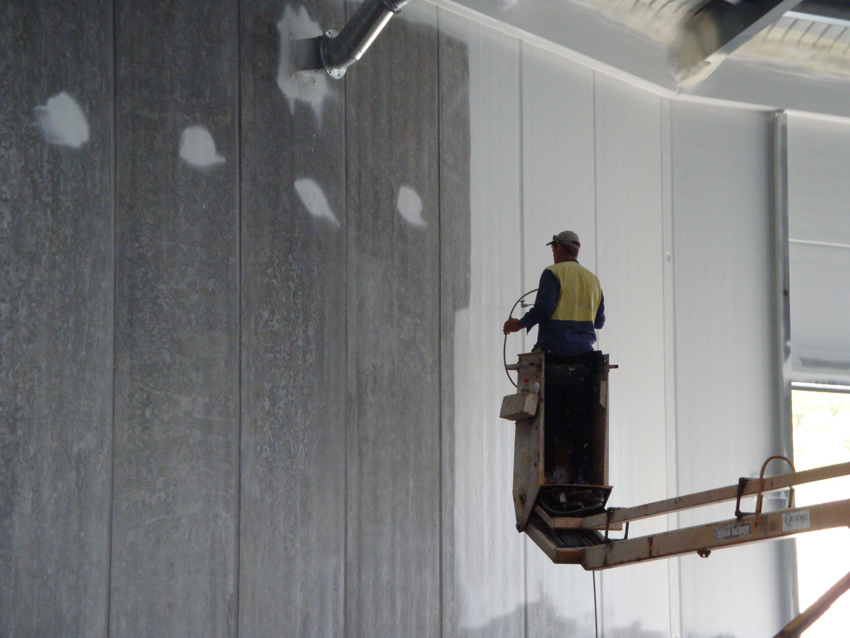

Internal wall sealed with Glo-Mastic membrane over our concrete penetrating Sealer “A” 101 sealer. Once dry, a coat of HRC (Heat Reflective Coating) is applied over the membrane and foam to minimize grain hang‑up. - 05

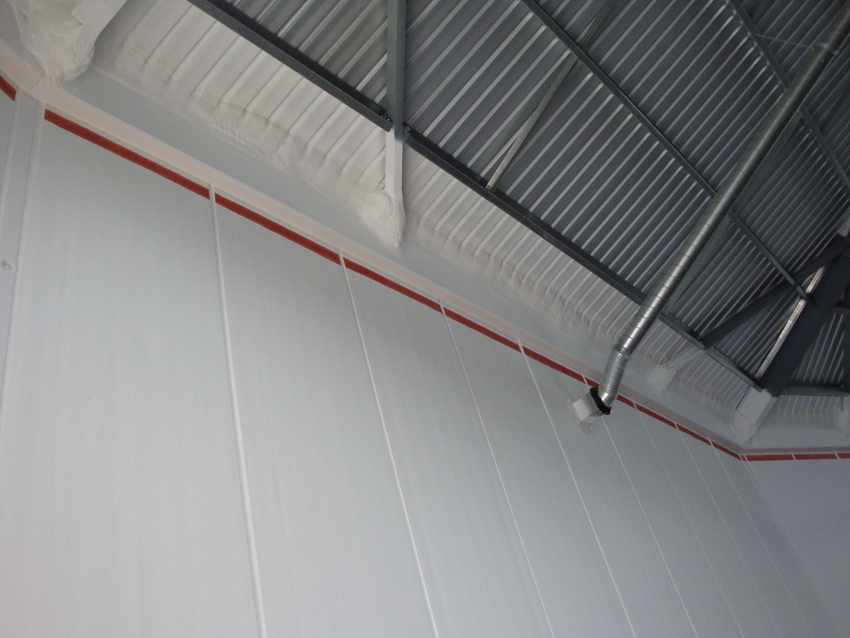

Internal walls finished with HRC and a RED fill line added to indicate the fill limit, preventing excess force or pressure on the seal. - 06

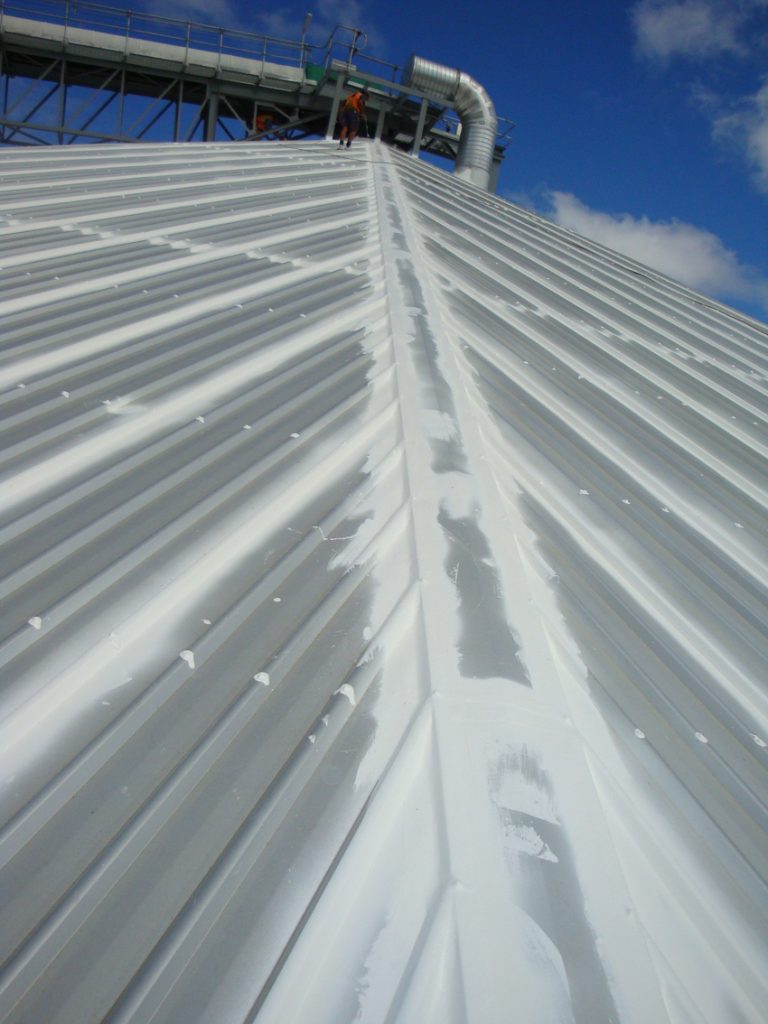

Roof sealed externally: all flashings, joints, bolts, and penetrations sealed with Glo-Mastic. Larger ridge gaps sealed with a combination of Glo-Mastic and chop strand fibreglass. Glo-Mastic applied using an airless spray pump for a seamless finish. - 07

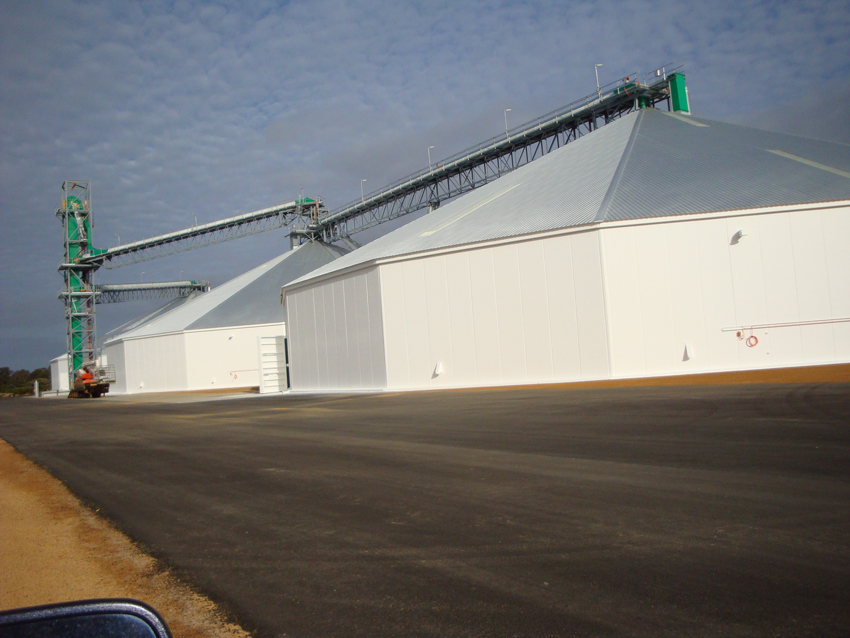

External walls coated with a penetrating coat of Sealer “A” 101 sealer. Glo-Mastic used to seal hairline cracks from installation or loader damage, followed by two coats of HRC topcoat. Electrical and aeration ducting masked to avoid overspray. - 08

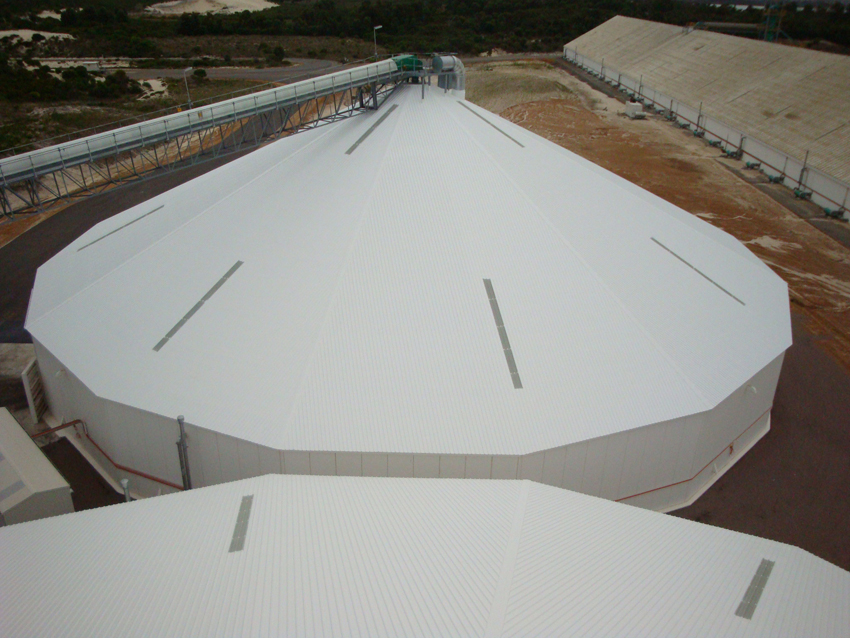

Topcoat application of HRC over the entire roof surface to reduce internal temperature and pressure on the seal. - 09

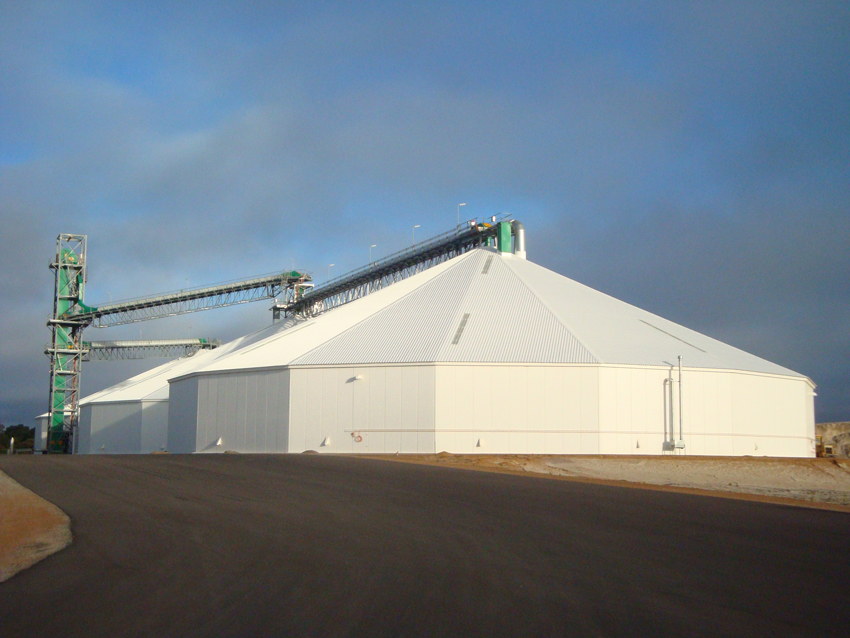

Sealing project completed in 10 weeks. 3 x 20,000 tonne silos ready to be filled and fumigated.
Applications for structure sealing
Our expert team uses advanced techniques and quality materials to meet AS 2628 standards, ensuring your grain is protected, fumigation is effective, and your storage assets last longer. Here are some examples of how we achieve it.
